Theme: PCB outline, shape of the board, copper layers, layers
How can I determine the thickness of the PCB or of the copper layer?

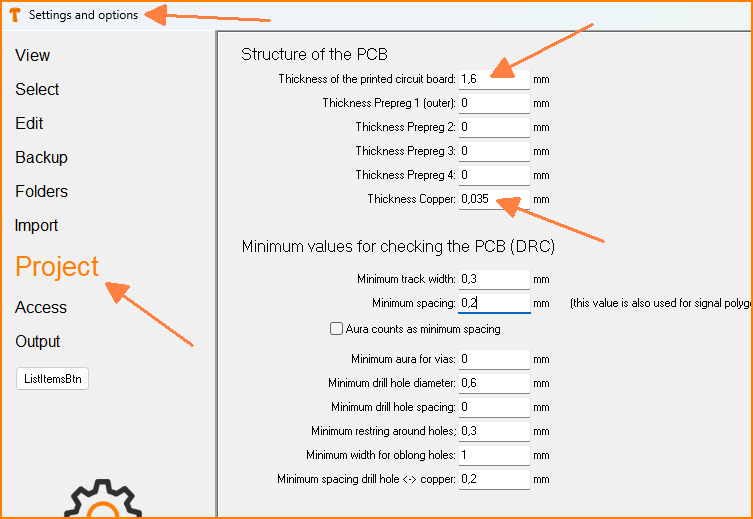

In the settings for the project, you can specify the thickness of the board and the copper coating:
(Fig. 1: Settings / Project, then click the [OK] button at the bottom left)
If the value is 0, TARGET assumes the standard PCB thickness of 1.6 mm (63 mil).
Always specify in writing in the order text if the manufacturer should use a thickness other than the standard thickness!
